-Made Electric Heat Treatment Furnace Hwf160-10nh Vacuum Furnace with Effective Chamber Dimensions 500500650mm

Model NO. : HWF160-10NH

Type : Electric Holding Furnace

Specification : 1650*1950*2000mm(W*H*D)

Supply Ability : 50 Sets/Year

: Support payments in USD

Refund policy : Claim a refund if your order doesn't ship, is missing, or arrives with product issues.

Contact Now

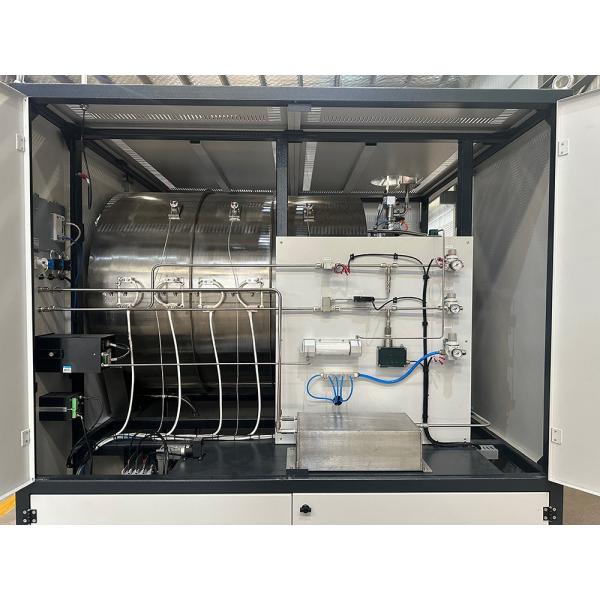

HWF160-10NH Electric Heat Treatment Vacuum Furnace

Product Specifications

Model NO.	HWF160-10NH
Type	Electric Holding Furnace
Specification	1650×1950×2000mm (W×H×D)
Supply Ability	50 Sets/Year
Payment	Support payments in USD
Refund Policy	Claim a refund if your order doesn't ship, is missing, or arrives with product issues

Primary Applications

This industrial furnace is specifically engineered for metal component soldering and HTCC package processing, while also supporting additional thermal treatments including decarburization, annealing, quenching, scorching, hardening, and thermal decomposition operations.

Technical Specifications

Rated Temperature: 900°C
Maximum Temperature: 1100°C
Atmosphere: N2, H2 with humidification
Oxygen Content: Measured by O2 content analyzer
Muffle Material: SUS 310S
Muffle Dimensions: φ750mm×900mm (d×D)
Effective Chamber Dimensions: 500×500×650mm (W×H×D)
Loading Method: Manual, through horizontal guideway shelves
Heating Method: Resistance wire pre-built heating plate
Cooling Method: Air cooling with blower
Temperature Control Stability: ±1°C (controller with P.I.D function)
Profile Steps: Default 20 steps
Temperature Uniformity: ±5°C
Thermocouple: Type K
Temperature Control: 3 Points
Temperature Measurement: 1 Point
Maximum Heating Power: 40kW
Typical Insulation Power: ≤25kW
Heating Speed: ≤5°C/min
Furnace Surface Temperature: ≤40°C
Maximum Vacuum Value: ≤10Pa
Exhaust System: 1 exhaust port on top with H2 igniter
Alarm System: Audible and visual alarms for over temperature, thermocouple failure, low air/water pressure, substandard vacuum level
Weight: 1500kg
Appearance Color: Light Grey
External Dimensions: 1650×1950×2000mm (W×H×D)

-Made Electric Heat Treatment Furnace Hwf160-10nh Vacuum Furnace with Effective Chamber Dimensions 500*500*650mm

Facility Requirements

Environmental Conditions: 0-40°C, humidity ≤80%RH, no corrosive gas, no strong airflow disturbance
N2 Conditions: 99.999% purity, working pressure: 0.2-0.4MPa, Max gas consumption 2-6 m³/h
H2 Conditions: Working pressure: 0.2-0.4MPa, Max gas consumption 1-3m³/h
Compressed Air: Dry, clean, oil-free, working pressure: 0.4-0.8MPa
Water Conditions: Clean, no corrosive water, working pressure 0.1-0.3MPa, 3-9L/min
Ventilation System: Non-contact access to user pumping system, capacity >15m³/h
Ground Requirements: Horizontal, no vibration, load-bearing >500 kg/m²
Power Condition: Capacity >55kVA, 3-phase 5-line, voltage 220/380V, frequency 50Hz
Installation Site: 3000×2500×3000mm (D×W×H), area >7.5m²

About Hefei Chitherm Equipment Co., Ltd.

An advanced equipment supplier specializing in the research, development, design, manufacturing, sales, maintenance, and service of high-, medium-, and low-temperature industrial furnaces and laboratory furnaces. Our product range includes bell furnaces, box furnaces, hot air furnaces, vacuum furnaces, tube furnaces, mesh belt furnaces, bogie hearth furnaces, rotary furnaces, roller hearth furnaces, and pusher furnaces.

These furnaces are extensively applied in advanced ceramics, electronic components, thick-film circuits, additive manufacturing, powder metallurgy, new energy, and photovoltaics. Suitable for thermal treatment processes of materials including ITO targets, MLCC/HTCC/LTCC, ceramic filters, magnetic materials, CIM/MIM, lithium battery cathodes and anodes, and various other new material processes such as pre-sintering, dewaxing, degreasing, sintering, drying, heat treatment, curing, and ceramization.
