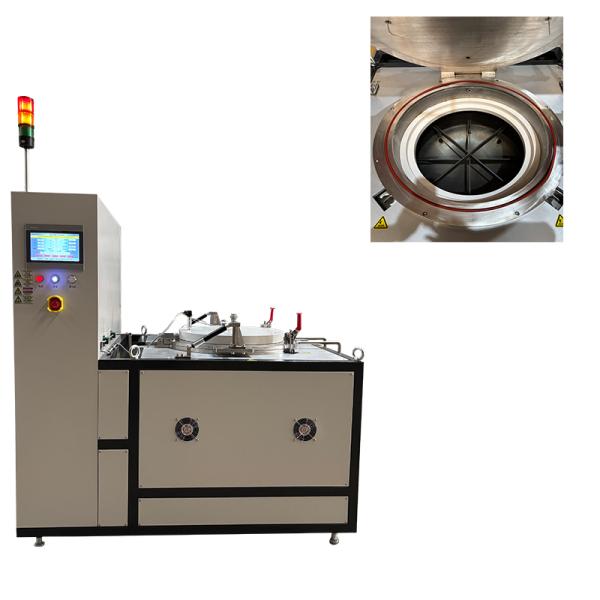

China′s Best-Selling Industrial Furnace Model HWF6630-10 Tank-Type Chemical Vapor Deposition Furnace
Product Specifications
| Attribute | Value |
| Heating Zone Dimensions | Φ660×300mm(D*H) |
| Heating Rate | ≤6ºC/Min |
| Usage | Ceramic Sintering |
| Range of Applications | Industrial |
| Temperature Control Stability | ±1ºC |
| Atmosphere | Nitrogen/Hydrogen/Acetylene |
| Package Gross Weight | 750.000kg |
Product Overview
The HWF6630-10 tank vapor deposition furnace is designed for medium-temperature heat treatment of electronic products. It supports vapor phase reaction processes in nitrogen, acetylene, and hydrogen atmospheres, as well as sintering processes under protective atmospheres. Equipped with a real-time computer monitoring system, this furnace is ideal for material process testing in research environments.
Technical Parameters
- Model: HWF6630-10
- Operating Temperature: 750°C
- Maximum Temperature: 1000°C
- Effective Chamber Size: Φ600×300mm (D×H)
- Heating Element: Internal heating with stainless steel heating tubes
- Processing Atmosphere: Nitrogen, Hydrogen, Acetylene
- Heating Method: FEC ceramic fiber heater
- Temperature Control Points: 2
- Temperature Stability: ±1°C, with PID parameter self-tuning function
- Control Method: Touch screen + PLC centralized control
- Alarm Protection: Audible and visual alarms for overtemperature and thermocouple breakage
- Heating Rate: ≤6°C/min
- Heating Power: 16kW
- Power Requirements: 3-phase 5-wire, 220/380V, 50Hz, capacity >22KVA
Standard Delivery Contents
| Item | Note | Quantity |
| Basic Components | Furnace | 1 UNIT |
| Inspection Certificate | Certificate of major outsourced components | 1 SET |
| Control Cabinet | | 1 UNIT |
| Technical Documents | Instructions, technical documents | 1 SET |
| Temperature Control Module | Yamatake or similar imported brands | 1 SET |
| Touchscreen | 10 inches | 1 SET |
| Mass Flow Meter | Nitrogen 200L/min, others 50L/min | 3 PCS |
| FEC Heater | Ceramic fiber embedded with spiral resistance wire | 1 SET |
| Furnace Liner | SUS310S | 1 PCS |
| Spare Parts | SSR, Sealing strip | 1 PC each |
Installation Requirements
- Environmental Conditions: Temperature 0~40°C, humidity ≤80% RH, no corrosive gases
- Floor Requirements: Level surface, minimal vibration, load capacity >500 kg/m²
- Power Requirements: 3-phase 5-wire, 220/380V, 50Hz, capacity >22 kVA
- Installation Space: Minimum 1500 × 1500 × 3000mm (D × W × H)
Frequently Asked Questions
What products does Chitherm offer?
We provide high-quality industrial furnaces including bell furnaces, hot air furnaces, box furnaces, tube furnaces, vacuum furnaces, car bottom furnaces, rotary kilns, mesh belt furnaces, and pusher furnaces.
What pre-sales services does Chitherm provide?
We offer expert consultation to help select the most suitable products and provide highly customizable solutions to meet specific requirements.
What are Chitherm's core strengths?
As a high-tech enterprise with patented technologies, we integrate R&D, manufacturing, and sales to deliver superior furnace solutions.
About Hefei Chitherm Equipment Co., Ltd.
We specialize in the research, development, and manufacturing of high-, medium-, and low-temperature industrial furnaces and laboratory furnaces. Our product range includes various furnace types extensively applied in advanced ceramics, electronic components, powder metallurgy, new energy, and photovoltaics industries.
